Wall Hung Cubicle System

Suspended Floor-Clear Floating Architecture

The Wall Hung Cubicle System delivers a floating, modern aesthetic by suspending panels from a top-mounted skirting. This system ensures easy floor cleaning and a sleek architectural finish.

Core Material European Compact HPL

Hardware Grade SS-304 / SS-316 Silver

Standard Height > 2150 mm (Floor Clearance: 150-200 mm)

Quality Guarantee 10-Year Warranty

Inquire on WhatsApp Call Sales Engineer

Architectural Highlights & Engineering

Zero floor posts: partitions are suspended cleanly from overhead structural beams
Unobstructed floor access enables swift, 100% hygienic mechanized floor washing
Cutting-edge architectural aesthetic chosen by premier European designers
Heavy-duty top-hung extruded aluminum load-bearing beam (100mm x 200mm)
Extreme tensile strength with anti-vibration damping bushings

Engineering Standards

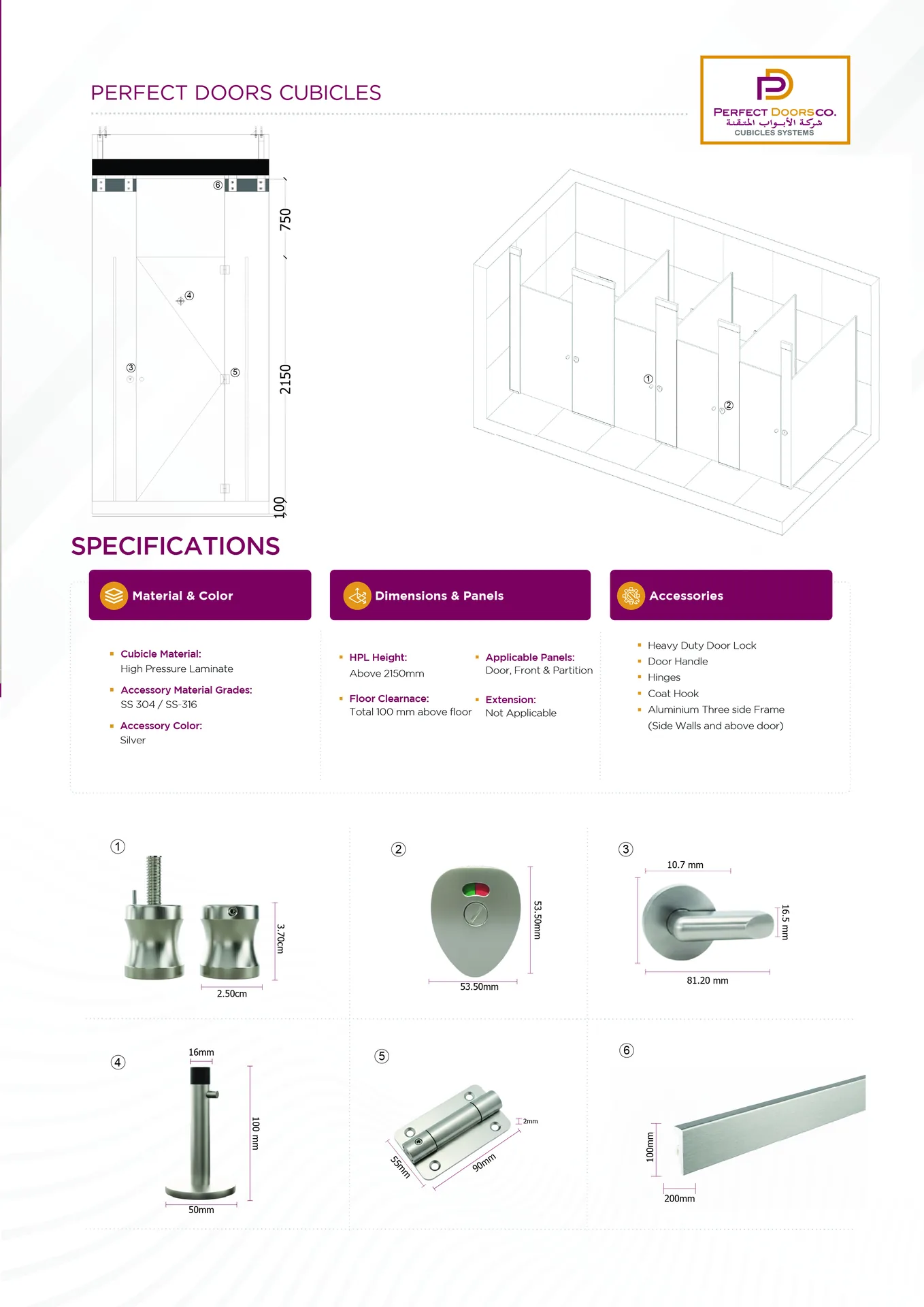

Technical Specifications & Drawing

Precision-engineered dimensions, panel specifications, and accessory hardware standards for project submittals and CAD layouts.

Cubicle Material	High Pressure Laminate (HPL)
Accessory Material Grades	SS-304 / SS-316 Silver
HPL Height	> 2150 mm (Floor Clearance: 150-200 mm)
Included Hardware	Silver Skirting (Top Hung System)
Panel Thickness	12mm / 13mm Solid Compact HPL
Warranty	10-Year Limited Warranty
Core Composition	Solid High-Grade European High Pressure Laminate (HPL Compact)
Resistance Standard	100% Water, Fire, Scratch & Chemical Resistant
Origin & Guarantee	16+ Years Legacy — Made in Saudi Arabia
