Frame System Two Side Standard Height

Dual Vertical Aluminium Framing for Extreme Stability

The Frame System Two Side Standard Height Cubicle is engineered for strength and long-term performance. Side-wall aluminum framing enhances stability, making it ideal for heavy-use environments.

Core Material European Compact HPL

Hardware Grade SS-304 / SS-316 Silver

Standard Height 2150 mm (Floor Clearance: 100 mm)

Quality Guarantee 10-Year Warranty

Inquire on WhatsApp Call Sales Engineer

Architectural Highlights & Engineering

Dual vertical 100mm heavy-duty extruded aluminium side frame channels
Extra structural rigidity preventing panel vibration and misalignment
High impact and vandalism resistance in intensive public traffic
Corrosion-resistant stainless steel and anodised aluminum finish
Smooth radiused corners ensuring user comfort and safety

Engineering Standards

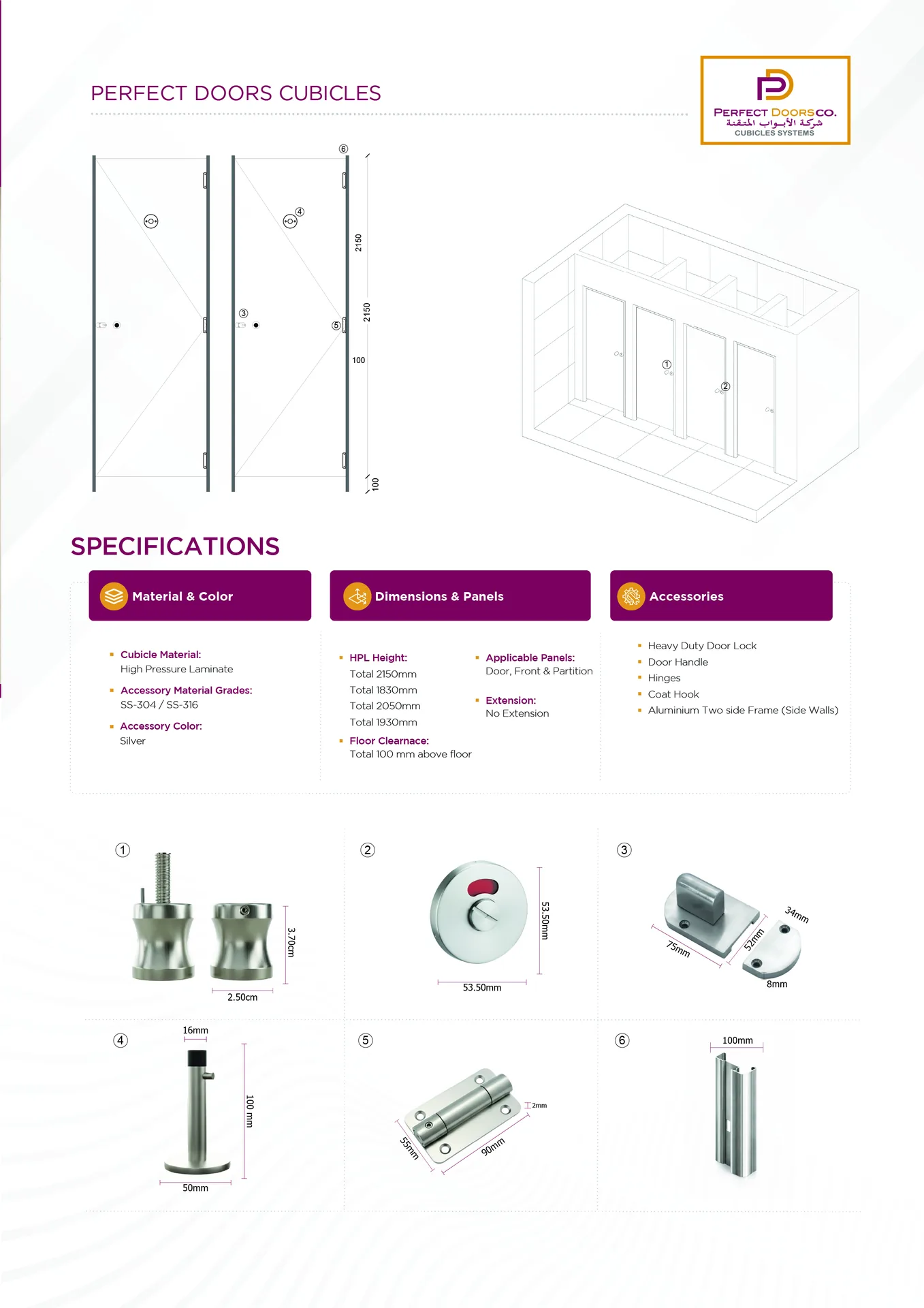

Technical Specifications & Drawing

Precision-engineered dimensions, panel specifications, and accessory hardware standards for project submittals and CAD layouts.

Cubicle Material	High Pressure Laminate (HPL)
Accessory Material Grades	SS-304 / SS-316 Silver
HPL Height	2150 mm (Floor Clearance: 100 mm)
Included Hardware	Aluminium Two-Side Frame
Panel Thickness	12mm / 13mm Solid Compact HPL
Warranty	10-Year Limited Warranty
Core Composition	Solid High-Grade European High Pressure Laminate (HPL Compact)
Resistance Standard	100% Water, Fire, Scratch & Chemical Resistant
Origin & Guarantee	16+ Years Legacy — Made in Saudi Arabia
