Full Frame System Standard Height

Integrated Overhead Transom & Full Perimeter Framing

The Full Frame System Standard Height provides enhanced privacy with a fixed panel extension above the door, while maintaining the strength of a side-frame structure.

Core Material European Compact HPL

Hardware Grade SS-304 / SS-316 Silver

Standard Height 2150 mm (Floor Clearance: 100 mm)

Quality Guarantee 10-Year Warranty

Inquire on WhatsApp Call Sales Engineer

Architectural Highlights & Engineering

Integrated fixed transom panel directly above the door for increased privacy
Structural aluminum side framing locking all frontal panels together
Prevents line-of-sight exposure while preserving ventilation
Heavy-duty SS-316 self-closing hinges and occupancy indicators
100% moisture-proof European solid HPL boards

Engineering Standards

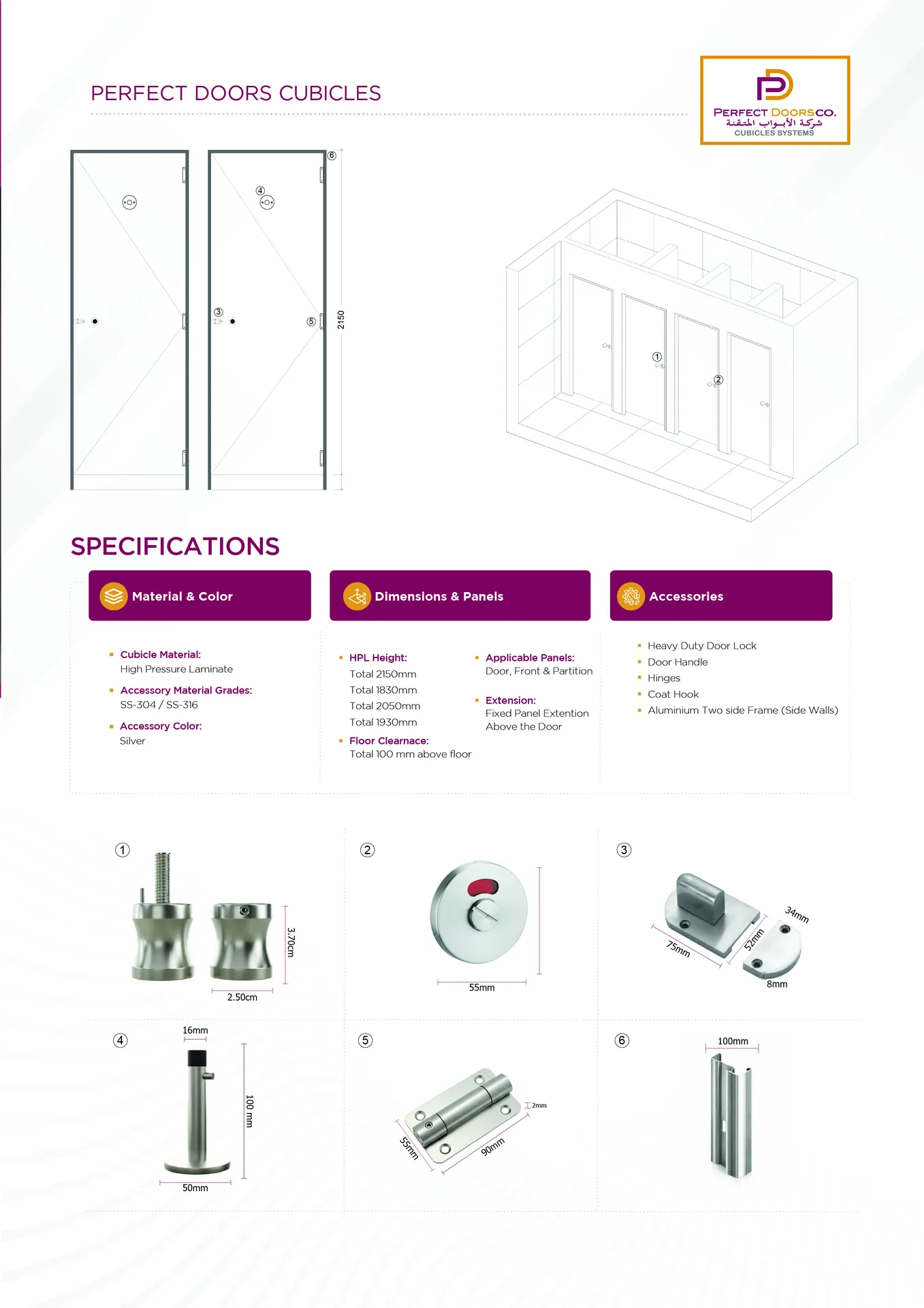

Technical Specifications & Drawing

Precision-engineered dimensions, panel specifications, and accessory hardware standards for project submittals and CAD layouts.

Cubicle Material	High Pressure Laminate (HPL)
Accessory Material Grades	SS-304 / SS-316 Silver
HPL Height	2150 mm (Floor Clearance: 100 mm)
Extension	Fixed Panel Extension Above the Door
Panel Thickness	12mm / 13mm Solid Compact HPL
Warranty	10-Year Limited Warranty
Core Composition	Solid High-Grade European High Pressure Laminate (HPL Compact)
Resistance Standard	100% Water, Fire, Scratch & Chemical Resistant
Origin & Guarantee	16+ Years Legacy — Made in Saudi Arabia
